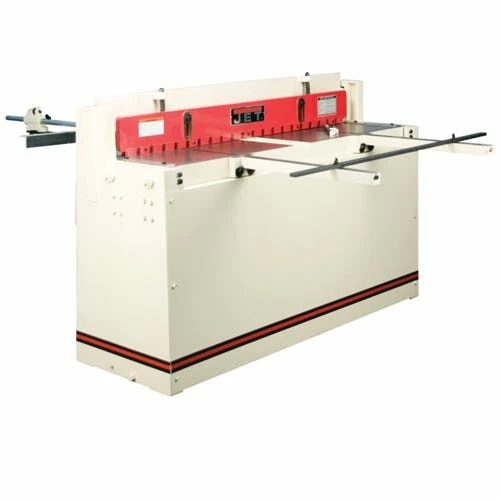

JET Tools Jet PS-1652T 52″ X 16 Gauge Pneumatic Shear 756203

• Jet
• PS-1652T; 52 x 16 Gauge Pneumatic Shear 756203
• The JET PS-1652T delivers the strength and accuracy your shop demands in a rugged; cast-iron grade frame. Capable of making the big cuts; and versatile enough to handle just about any job you need completed. The pneumatic control system ensures smooth operation and smooth cuts along the precision-aligned bed and beam.
• Hi-quality cast-iron grade frame to eliminate deflection across the blade-span and blade frame work
• Low cutting angle to cut narrow strips without twisting
• Precise bed and beam alignment assures working accuracy
• Adjustable working bed for correct setup according to the blade clearance
• 16 gauge maximum cutting capacity for mild-steel
• 12-14 gauge maximum cutting capacity for aluminum and copper alloys
• 40 Strokes per Minute – Full Length
• 8.8 Air Consumption – CFM
• Style (Type) Pneumatic
• Max. Soft. Alloy Capacity (Gauge) 12 – 14
• Mild Steel Capacity (Gauge) 16
• Shearing Length Capacity (In.) 52
• Back Gauge Capacity (In.) 28-1/2
• Front Gauge Capacity (In.) 28
• Strokes Per Minute (Full Length) 40
• Air Consumption (CFM) 25.3
• Overall Dimensions (L x W x H) (In.) 60 x 24 x 43
• Weight (Lbs.) 1;048

“
