Jet Tools

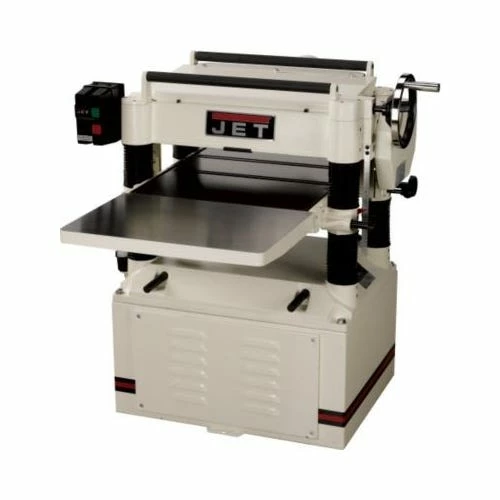

20 Woodworking Planer JWP-208HH-1 w/ Helical Head 708544
JWP-208HH-1 helical head planer quickly and quietly transforms rough lumber into smooth boards; with a full 20” planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported; while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments.
FEATURES:
- Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
- Heavy-duty cast iron and steel contruction for added strength and durability
- Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
- Large; cast iron; precision ground table for precise workpiece support
- Powerful 5HP TEFC induction motor with three v-belt transmission for smooth and consistent power
- Positive gear drive moves table quickly and accurately
- Work table is precision-ground and polished for consistently smooth operation
- Large handwheel with positive gear drive allows for quick and accurate table adjustments
- 1/16″ increment height scale lets you make the most precise adjustments for fine cuts
- 5″ dust port provides efficient chip and dust collection
- One-piece welded steel base offers solid support and stability
- Magnetic Controls provide long life and reliability
SPECIFICATIONS:
| Style (Type) | Floorstanding Model |
|---|---|
| Knife Size (L x W x T) | 15 x 15 x 2.5 |
| Cutterhead Speed (RPM) | 5000 |
| Cutterhead Diameter (In.) | 3-3/16″ |
| Number of Knives | 92 Four-Sided Inserts |
| Maximum Full Width Depth of Cut (In.) | 3/32″ |
| Maximum Planing Width (In.) | 20″ |
| Maximum Planing Thickness (In.) | 8″ |
| Minimum Planing Length (In.) | 6-3/4″ |
| Feed Rate (FPM) | 24/31 |
| Number of Speeds | 2 |
| Table Size (L x W) (In.) | 25-3/4″ x 20″ |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Dust Port Outside Diameter (In.) | 5″ |
| Motor Power (HP) | 5 |
| Motor Phase (PH) | 1 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Amps | 27 |
| Weight | 837 lbs |
“
