JET Tools Jet JWP-15BHH 15″ CS Planer W/ Helical Cutterhead 722155
Original price was: $372.00.$95.99Current price is: $95.99.
- Quality Products, Quality Service
- Secure Shopping with Safe Payments
- Experience the difference quality makes.
- Quality and Affordability Combined
Jet Tools

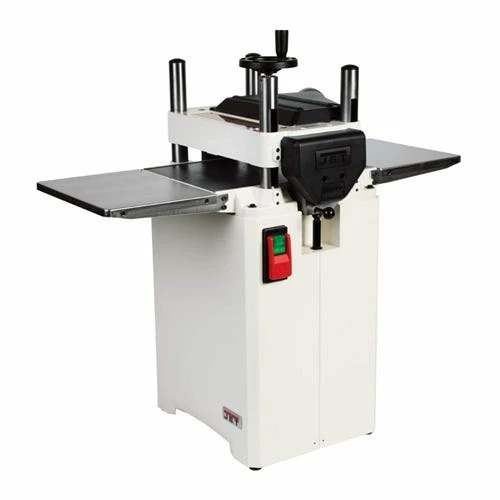

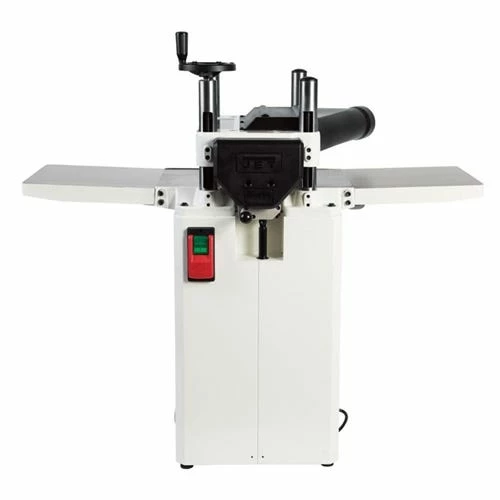

JWP-15BHH 15 CS Planer w/ Helical Cutterhead 722155
The New JET 15” helical head planer quickly and quietly transforms rough lumber into smooth boards. This machine means business with a powerful 3 HP motor combined with a helical cutterhead housing 48 staggered carbide quick change knives.
FEATURES:
- Innovative JET – Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead; reducing the chance of board snipe.
- Helical Cutterhead houses 48 staggered carbide knives that are engineered to align themselves without any adjustment for a superior finish and quieter cut.
- Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
- Powerful 3-HP motor with v-belt transmission reduces vibration and running noise.
- Dual infeed speed control for 16fpm or 20fpm; maximizes cut efficiency.
- Maximum depth of cut 1/8″; 6″ cutting height and 15″ width capacity.
- Large cast Iron precision ground infeed/outfeed tables provide support for large work pieces.
- Large hand wheel with positive gear drive easily moves the head to the desired board thickness.
- Magnetic Switch with green safety light illuminates when powered.
- 4″ Dust Port hooks up to dust management system and helps keep shop clean.
SPECIFICATIONS:
| Style (Type) | Floorstanding Model |
|---|---|
| Type of Cutterhead | Helical Head |
| Cutterhead Speed (RPM) | 5;200 |
| Cutterhead Diameter (In.) | 2-5/8″ (68mm) |
| Cuts Per Minute | Continuous |
| Number of Knives | 48 |
| Maximum Depth of Cut (In.) | 1/8″ |
| Maximum Full Width Depth of Cut (In.) | 1/8″ |
| Maximum Planing Width (In.) | 15″ |
| Maximum Planing Thickness (In.) | 6″ |
| Minimum Planing Length (In.) | 5.6″ |
| Feed Rate (FPM) | 16 and 20 |
| Number of Speeds | 2 |
| Table Size (L x W) (In.) | 15″ x 46.5″ |
| Table Size with Extensions (L x W) (In.) | 15″ x 49.2″ |
| Dust Collection Minimum CFM Required (CFM) | 600 CFM |
| Dust Port Outside Diameter (In.) | 4″ (102mm) |
| Motor Power (HP) | 3 |
| Motor Phase (PH) | 1 |
| Motor Voltage (V.) | 230 |
| Motor Amps | 15 |
“
| OPT SKU | JET722155 |
|---|---|
| MPN | 722155 |
| UPC/GTIN | 731325762365 |
| Weight | 331.00 |
