Jet Tools

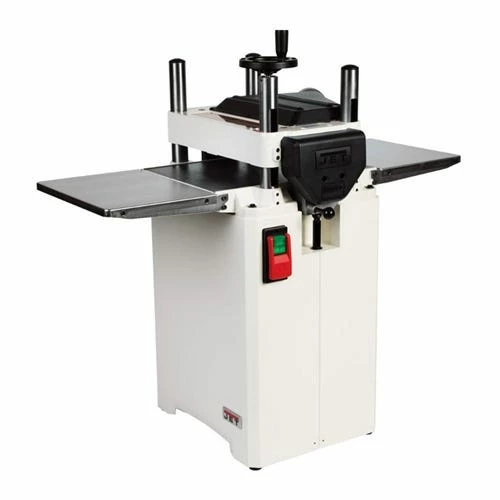

JWP-15B 15 CS Planer w/ Straight Knives 722150

For projects that require board thickness to be beyond exact; the New JET 15” Straight Knife planer gets the job done with ease. This sweet machine features a monster 3-horsepower motor with two speed gear box to adjust your feed rate for a better finished surface.

FEATURES:

Innovative JET – Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead; reducing the chance of board snipe.
Straight Cutterhead has three high-speed steel knives that lock firmly in place to prevent movement while in use.
Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
Powerful 3-HP motor with v-belt transmission reduces vibration and running noise.
Dual infeed speed control for 16fpm or 20fpm; maximizes cut efficiency.
Maximum depth of cut 1/8″; 6″ cutting height and 15″ width capacity.

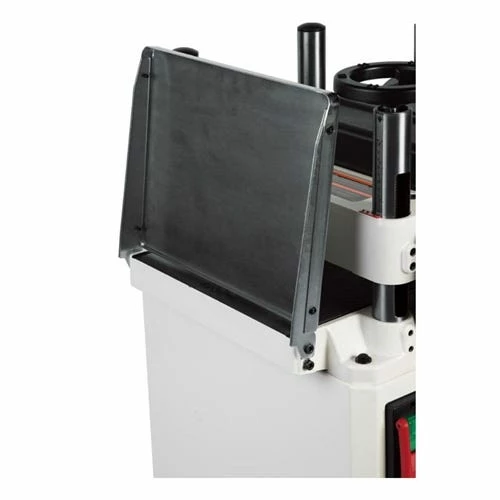

Heavy-duty folding infeed/outfeed tables provide support for work pieces and fold for convenience.
Large hand wheel with positive gear drive easily moves the head to the desired board thickness.

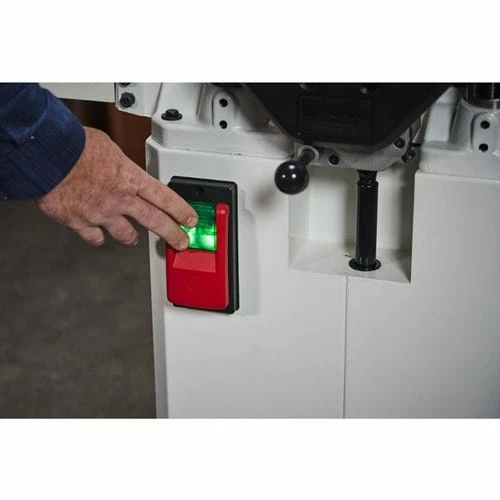

Magnetic Switch with green safety light illuminates when powered.

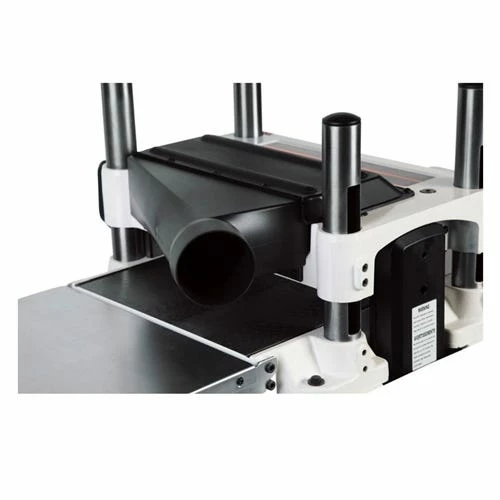

4″ Dust Port hooks up to dust management system and helps keep shop clean.

SPECIFICATIONS:

Style (Type)	Floorstanding Model
Type of Cutterhead	Straight Knife
Cutterhead Speed (RPM)	5;200
Cutterhead Diameter (In.)	2-5/8″ (68mm)
Cuts Per Minute	15600
Number of Knives	3
Maximum Depth of Cut (In.)	3/16″
Maximum Full Width Depth of Cut (In.)	1/8″
Maximum Planing Width (In.)	15″
Maximum Planing Thickness (In.)	6″
Minimum Planing Length (In.)	5.6″
Feed Rate (FPM)	16 and 20
Number of Speeds	2
Table Size (L x W) (In.)	15″ x 21.45″
Table Size with Extensions (L x W) (In.)	15″ x 21.45″
Dust Collection Minimum CFM Required (CFM)	600 CFM
Dust Port Outside Diameter (In.)	4″ (102mm)
Motor Power (HP)	3
Motor Phase (PH)	1
Motor Voltage (V.)	230
Motor Amps	15
