JET Tools JET JWDS-1836 18-36" Drum Sander With Stand 723530K

JET Tools JET JWDS-1836 18-36" Drum Sander With Stand 723530K - Image 2

JET Tools JET JWDS-1836 18-36" Drum Sander With Stand 723530K - Image 3

JET Tools JET JWDS-1836 18-36" Drum Sander With Stand 723530K - Image 4

JET Tools JET JWDS-1836 18-36″ Drum Sander With Stand 723530K

Original price was: $339.00.Current price is: $95.99.

SKU: JET723530K Categories: JET Tools, JET Woodworking Equipment, Jet Woodworking Sanders - Drum Tag: JET Tools

Quality Products, Quality Service
Secure Shopping with Safe Payments
Experience the difference quality makes.
Quality and Affordability Combined

JET

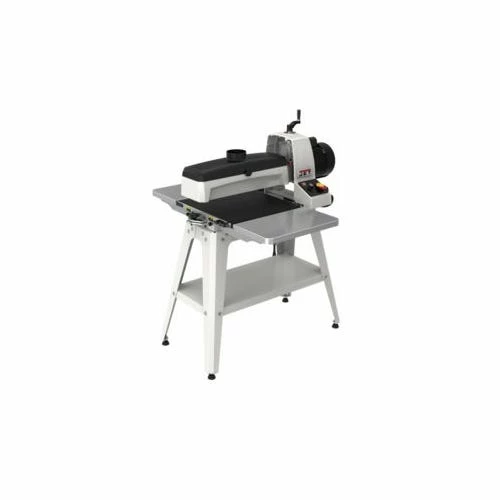

JWDS-1836 18″-36″ Drum Sander with Stand 723530K
Introducing the newly designed JET JWDS-1836 Drum Sander from JET. The 1.75 horsepower motor delivers plenty of power to handle just about any sanding task. The innovative tool-less parallelism system keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial. The variable-speed rate permits you to choose the optimal feed rate for a full range of projects; while the Sandsmart feature continuously monitors the load on the drum motor to prevent an overload situation. The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish. The JWDS-1836 Drum Sander delivers everything you need for an effortless finish.
Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload

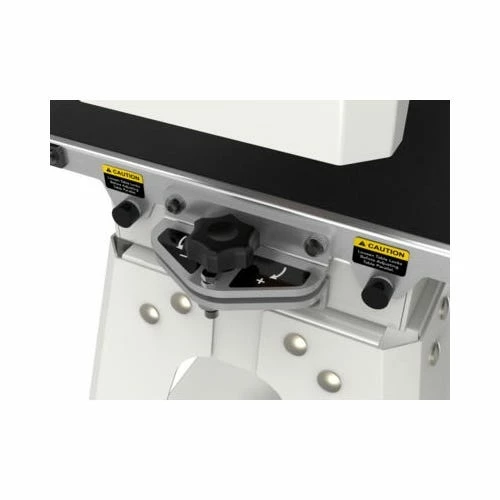

Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed – no tools required
Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4″ collection port
Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4″ collection port
Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
Precision-flattened reinforced steel conveyor bed
Redesigned conveyor system pulls the workpiece through the sander instead of pushing
One rotation of the top-position handwheel adjusts the drum height by 1/16″
The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
Toolless abrasive take-up clips make changing abrasives quick and easy
Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
Separate feed and drum motors provide independent control; optimizing the performance of the sander
Conveyor belt TRACKERS reduce the need for manual belt adjustments
Integrated on/off switch and variable speed control knob are conveniently located
Stand features a 20″ x 37″ footprint to increase stability and has a storage shelf and pre-drilled holes for casters
Drum is easily removable
Drum utilizes sealed and permanently lubricated ball bearings for longer life
SPECIFICATIONS:
Style (Type): Open Stand
Drum Length (In.): 18
Number of Sanding Drums: 1
Drum Speed (RPM): 1;720
Drum Diameter (In.): 5
Drum Bearing Diameter (In.): 1
Conveyor Motor: 43 in.-lbs. torque; direct drive; dc
Conveyor Speed (FPM): 0 – 10
Maximum Board Thickness (In.): 3
Maximum Board Width (In.): 36 (two passes)
Minimum Board Length (In.): 2-3/8
Minimum Board Thickness (In.): 1/32
Dust Collection Minimum CFM Required (CFM): 500
Dust Port Outside Diameter (In.): 4
Motor Power (HP): 1-3/4
Motor Phase (PH): 1
Motor Voltage (V): 115 only
Motor Amps: 15
Recommended Circuit Size (Amps.): 20
