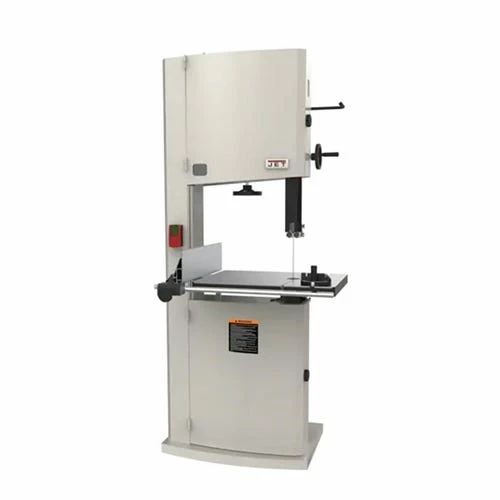

JET Tools Jet JWBS-20-3, 20″ Bandsaw, 3HP, 230V 714800

Original price was: $354.00.Current price is: $96.99.

Quality Products, Quality Service

Secure Shopping with Safe Payments

Experience the difference quality makes.

Quality and Affordability Combined

Jet

JWBS-20-3; 20 Bandsaw; 3HP; 230V 714800

Designed to perform; the JET 20” bandsaw delivers more re-saw capacity; greater throat depth and the horsepower you need to tackle bigger boards; create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large; independently adjustable guides are tool-less to save you time on set up. The JET 20” steel frame bandsaw is engineered to build great projects through superior performance.

FEATURES:

16″ Resaw capacity for cutting large pieces of wood; slicing veneers and cutting book matched panels.
27-1/4″ x 20″ precision ground cast iron table for added stability and work support.
Fence system features a micro-adjustable; dual-position side plate.
Tool-less; independently adjustable; upper and lower ball bearing guides.
Rigid; four-sided guide post with rack and pinion adjustment for optimum blade support.
Easy-to-read blade tension scale can be viewed through upper door window.
Single knob adjustment simplifies the blade tracking process.
Blade tracking window provides clear view of blade during tracking.
Heavy duty tensioning with quick release features three settings: full tension; partial tension and full release.
Cast iron trunnion for maximum support and stability.
Slotted table allows for front blade removal.
Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy.
Round table insert features leveling screws for precise adjustment.
Conveniently located dual 4″ dust collection ports catch dust and chips at the source.
Table tilts 5° left and 45° right to accommodate a wide variety of cuts.

SPECIFICATIONS:

Band Saw Size/Wheel Diameter (In.)	20-1/4
Cutting Capacity Width (In.)	20
Cutting Capacity Height (In.)	16
Blade Speed (SFPM)	2530/4850
Table Size (L x W) (In.)	27-1/4 x 20 x 1-5/8
Blade Width (In.)	1″ x 3TPI
Table Tilt (Deg.)	-5;45
Table Height from Floor (In.)	37
Motor Power (HP)	3
Motor Voltage (V)	230 only
Motor Amps	12
