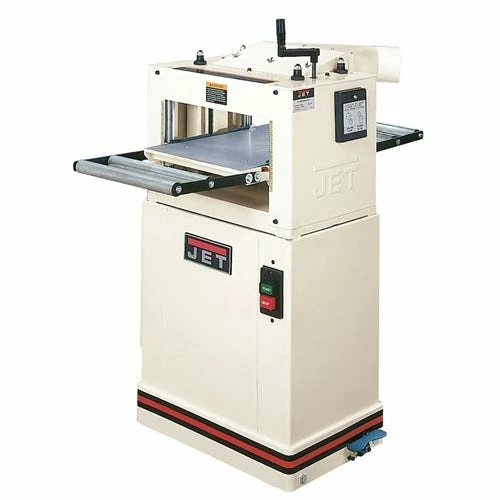

JET Tools Jet JPM-13CS 13″ Planer/Molder Combination Machine 708524

Jet Tools

13 Planer/Molder JPM-13CS Combination Machine 708524

The JET JPM-13CS 13″ Closed Stand Planer / Molder boasts a 1.5 HP motor. The sturdy cast iron table and base provide strength and reduce vibration during use. Built in lockable caster add support and stability to the machine while allowing it to be maneuverable.

FEATURES:

• Cast iron table and base provide strength and reduce vibration during use.
• Four precision-ground column design feature adds stability when raising and lowering the table.
• Three cutter head design produces a superior finish in either application.
• Two speed gear box has feed rates set for optimum planing and molding results.
• Molding cutter head accommodates over 40 standard molding cutter sets; most 2″ or smaller heads can be installed without removing the planning knives to save you set-up time.
• Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood.
• Top-mounted height adjustment handle is easy to use for quick table height changes.
• Totally enclosed fan-cooled 1-1/2HP motor uses two matched V-belts to deliver smooth; consistent power to the cutter head.
• Exclusive angled 4″ dust port keeps the dust hose out of the way while providing efficient chip and dust removal.
• Built-in lockable casters add support and stability to machine while in use.

SPECIFICATIONS:

Style (Type)	Planer/Molder
Maximum Planing Width (In.)	13″
Minimum Planing Length (In.)	14″
Maximum Planing Thickness (In.)	6-1/8″
Number of Knives	3
Cuts Per Minute	13500
Cutterhead Diameter (In.)	2-9/16″
Cutterhead Speed (RPM)	4500
Feed Rate – Planing (FPM)	20
Feed Rate – Molding (FPM)	10
Dust Port Outside Diameter (In.)	4″
Motor Power (HP)	1-1/2
Motor Phase (PH)	1
Motor Voltage (V.)	115/230
Prewired Voltage (V.)	115
Motor Amps	15/7.5
Weight	258 lbs

“
