JET Tools Jet JMD-18 Mill/Drill With R-8 Taper 115/230V 1 Ph 350018

Jet Tools

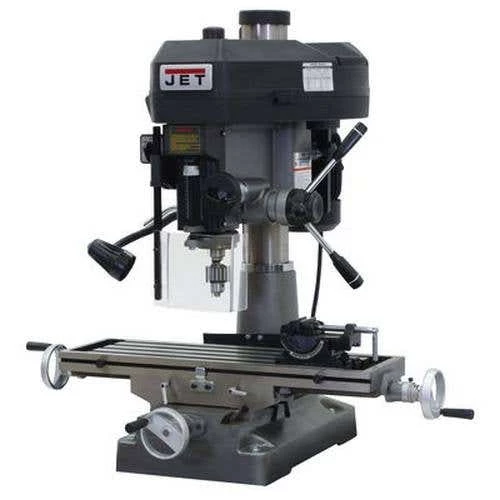

JMD-18 Mill/Drill with R-8 Taper 115/230V 1 Ph 350018

Mill drills are a lighter alternative to a milling machine. The JMD Milling Drilling Machines possess the advantages of space-saving versatility; affordability and light machining capability.

FEATURES:

• One-piece cast iron column for added support.
• Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds.
• Base taper allows for easier clean up.
• Drill Press angle vise.
• UL Listed motor.
• Extra large worktable.
• Positive quick-stop knob and easy to read internal depth gauge.
• 360° head swivel.
• Work lamp.
• Forward and Reverse Switch.
• Drill Chuck Guard.
• Adjustable Carbide facemill.
• 1/2 drill chuck; chuck arbor.

SPECIFICATIONS:

Drilling Capacity (In.)	1-1/4″
Face Mill Capacity (In.)	3″
End Mill Capacity (In.)	3/4″
Swing (In.)	15-7/8″
Max Distance Spindle to Table (In.)	17-1/2″
Spindle Taper (In. x TPI)	R-8
Spindle Travel (In.)	5″
Quill Diameter (In.)	3″
Column Diameter (In.)	4-1/2″
Number of Spindle Speeds	12
Range of Spindle Speeds (RPM)	150 – 3;000
Table Size (L x W) (In.)	9-1/2″ x 32-1/4″
Table Longitudinal Travel (In.)	20-1/2″
Work Table Weight Capacity (Lbs.)	400 lbs
T-Slots Number and Size (In.)	4″ and 5/8″
T-Slot Centers (In.)	1-13/16″
Base Dimensions (In.)	15-3/4″ x 23-3/4″
Motor (HP)	2 HP; 115/230V; 1Ph
Overall Dimensions (L x W x H) (In.)	47″ x 40″ x 51″
Weight	580 lbs

“
