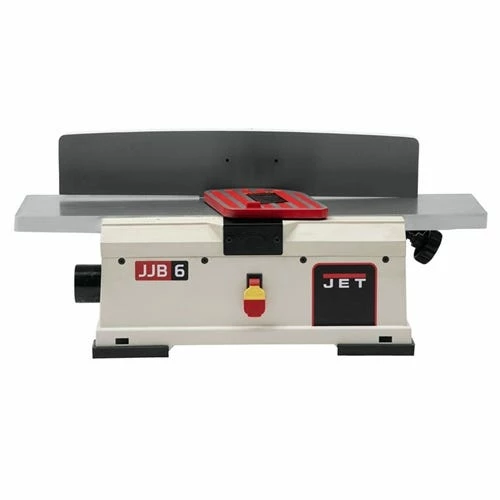

JET Tools Jet JJ-6HHBT 6″ Helical Head Benchtop Jointer 718600

Jet Tools

JJ-6HHBT 6 Helical Head Benchtop Jointer 718600

The new JET 6″ Benchtop Jointer provides a smooth and consistent cut surface thanks to its use of 14 carbide tipped helical head blades. Heavy-duty cast iron table and fully adjustable fence make for a premium cutting experience.

FEATURES:

• Integrated blower motor moves dust and chips away from the cutterhead into the included dust collection bag.
• Performance: A two-row 14 carbide blade cutterhead for a smooth; clean cut.
• Quality: Cast iron fence and table give exceptional stability to this benchtop jointer.
• Powerful 1HP 15 amp motor turns the cutter head at 10;000 RPM.
• Highly visible scale for accurate depth of cut adjustments up to 1/8”.
• Internal blower motor propels chip and dust through a 2-1/2” dust port which can be connected to a dust collector or the included large dust bag.
• Versatility: Cast iron fence tilts +/- 45°; with locks at -45°; 90°; +45° and includes an internal chip/dust blower with bag.

SPECIFICATIONS:

MOTOR
Motor	1 HP Brushed DC; 115V; 60Hz; 15A
CAPACITIES
Cutterhead Type	Helical Head
Cutterhead Diameter (in.)	2
Cutterhead Speed (RPM)	10;000
Sound Emission (dB)	92
Maximum Width Cutting Capacity (in.)	6″
Maximum Depth Cutting Capacity (in.)	1/8″
Cuts Per Minute	Continuous
Cast Iron Table Size (L x W / in.)	28-5/8″ x 6-1/4″
Cast Iron Fence Size (L x H / in.)	22-3/4″ x 4-3/8″
Fence Tilts (deg.)	-45° to +45°
Fence Positive Stops (deg.)	45° L; 90°; 45°R
Number of Knives	14 Carbide Four Sided in 2 Spiral Rows
Dust Port Diameter (in.)	2-1/2″
DIMENSIONS
Overall Dimensions (L x W x H / in.)	30″ x 20″ x 13″
Shipping Dimensions (L x W x H / in.	33″ x 15″ x 11″
Gross Weight (lbs.)	67 lbs

INCLUDES:

• Cast Iron Fence
• Internal dust collection system
• Push block
• Push stick
• Large dust collection bag

“
