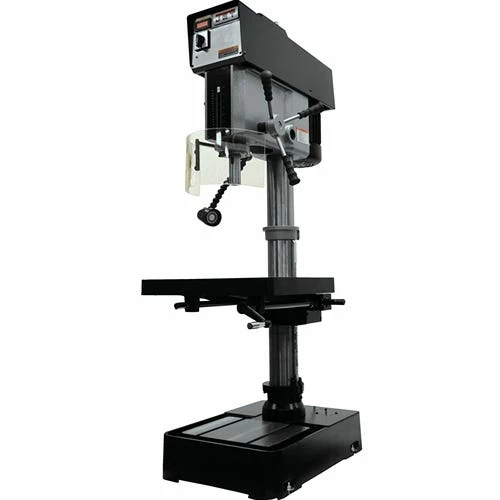

JET Tools JET JDP-20VS-1 20″ Drill Press 1-1/4″ Drilling Capacity 1-PH 354230

Original price was: $396.00.Current price is: $99.99.

Quality Products, Quality Service

Secure Shopping with Safe Payments

Experience the difference quality makes.

Quality and Affordability Combined

Jet Tools

JDP-20VS-1 20 Drill Press 1-1/4″ Drilling Capacity 1-PH 354230

Solid design and construction deliver precision operation and control. JET 20” Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base.

FEATURES:

Steel Column.
Heavy Duty Casted Iron Design.
Massive 3″ Quill Diameter.
Variable Spindle Speeds from 300 – 2;000 RPM’s.
Front Mounted Postitive Control Depth Stop.
Table rotates 360° around the column.
Large Hand Grips designed with the Users comfort in mind.
LED Machine Lamp.
Spindle Safety Guard.
Following strict guidelines and electrical requirements; these JET Drills are CSA/CUS certified.

SPECIFICATIONS:

Style	Variable Speed
Drills to Center of Circle (in)	20
Drilling Capacity Cast Iron (In.)	1-1/4
Drilling Capacity Mild Steel (In.)	1
Distance Column to Spindle (In.)	10 7/16
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)	300 – 2;000
Column Diameter (In.)	4-1/2
Spindle Taper (In. x TPI)	MT-3
Spindle Travel (In.)	6
Spindle Distance to Base (In.)	44-1/2
Spindle Distance to Table (Max.) (In.)	30-1/4
Table Travel (In.)	20
T-Slots Number and Size (In.)	3 & 5/8
T-Slot Centers (In.)	7-7/16
Table Size (L x W) (In.)	22×18-3/4
Work Table Weight Capacity (Lbs.)	154
Base Dimensions (In.)	27 x 19
Base Slots Number & Size (In.)	2 & 5/8
Motor (HP)	2HP; 115/ 230V; 1ph ;4P
Overall Dimensions (L x W x H) (In.)	38.18 x27.16 x79.52
