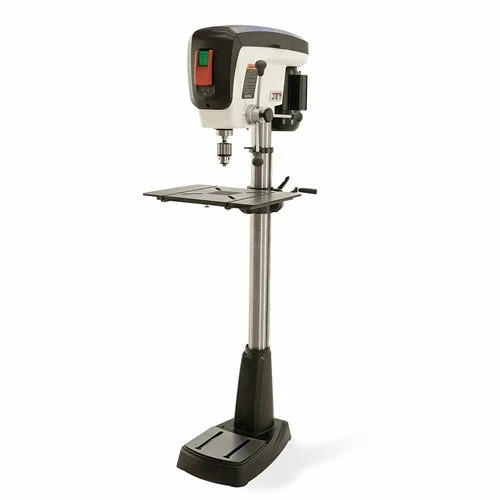

JET Tools Jet JDP-17 17″ Drill Press Woodworking 716300

Jet Tools

Woodworking 17 JDP-17 Drill Press 716300

From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system; this drill press is designed to perform. This drill press also features a long-lasting; built-in LED work light to provide direct lighting while reducing shadows.

FEATURES:

• Spindle travels a full 5” with one revolution of the handle.
• Large 14″ x 19″ precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project.
• One-handed belt tensioning allows for rapid speed changes.
• Power switch features a safety key and large; paddle-style off button.
• Integrated depth stop makes repetitive drilling quick and easy.
• Xacta-X laser system easily identifies the drill center.
• Long-lasting; built-in LED work light reduces shadows.
• Table edge lip designed to make clamping easy.
• Replaceable MDF table insert.
• Large cast iron base provides stability.
• Powered by an efficient 3/4HP; 1Ph; 115V TEFC motor and poly-v belt drive system.
• CSA Certified.

SPECIFICATIONS:

Style (Type)	Floorstanding Model
Swing (In.)	16-7/8″
Spindle Travel (In.)	5″
Number of Spindle Speeds	16
Spindle Speed Range (RPM)	210 – 3500
Spindle Distance to Table (Max.) (In.)	30″
Spindle Distance to Base (In.)	46-1/2″
Table Size (L x W) (In.)	14″ x 19″
Table Tilt (Deg.)	90 Left and Right
Chuck Distance to Base (In.)	42-7/8″
Chuck Distance to Table (In.)	25-7/8″
Chuck Size (In.)	5/8″
Column Diameter (In.)	3-5/32″
Base Size (In.)	20″ x 12-5/8″
Motor Power (HP)	3/4
Motor Phase (PH)	1
Motor Voltage (V.)	115
Prewired Voltage (V.)	115
Motor Amps	9
Recommended Circuit Size (Amps.)	15
Assembled Machine Dimensions (L x W x H) (In.)	28-1/2″ x 19″ x 65″
Weight	253 lbs

“
