Jet

JDCS-505; Metal Dust Collector Stand 115V 414800

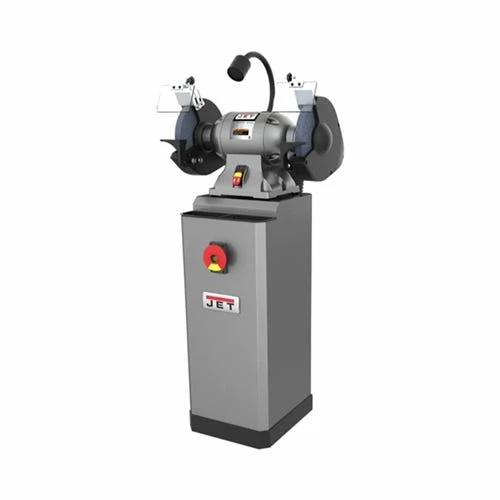

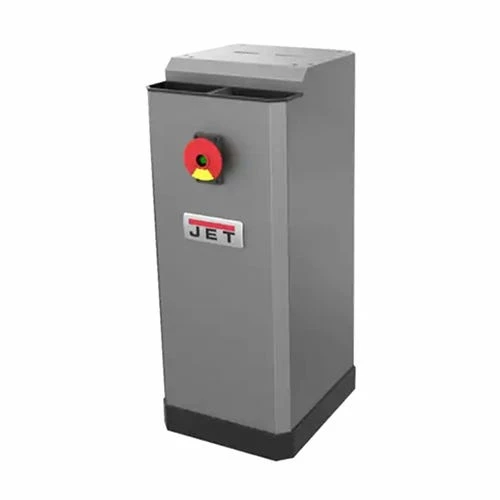

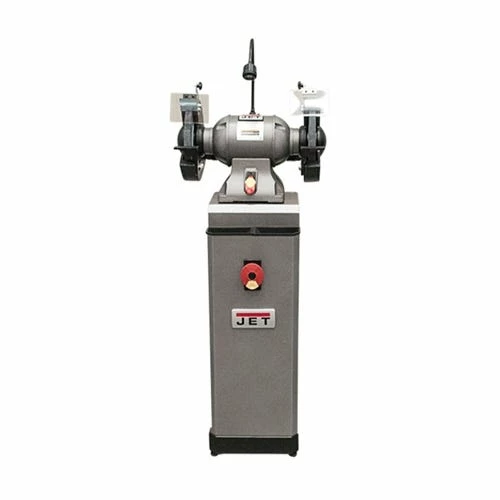

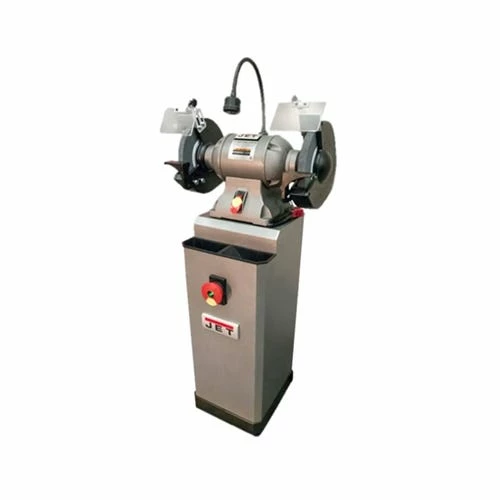

JET’S new Metal Dust Collection Stand is great for collecting abrasive dust from most brands Bench Grinders and Bench Top Belt & Disc Sanders. CSA/CUS certified.

FEATURES:

Universal Metalworking Dust Collection Stand; fits ANY BRAND bench grinder and bench top belt & disc sanders.
Turbo fan design provides a maximum of 472 CFM of air movement for effective metal dust collection.
Non-sparking aluminum fan blade and housing eliminates the risk of fire during the collection of abrasive dust and chips.
Two removable water pots gives you the features of a pedestal stand along with all the benefits of a dust collector.
Chips and dust collect into a metal drawer that is easy to empty; and the high temperature filters are replaceable.
ANY BRAND bench top belt; disc or combination machine can be mounted using the optional Universal Adapter Plate (414830).
Heavy-Duty 16 gauge steel construction.
Four Adjustable Leveling Pads.
Large On/off switch with safety key.

SPECIFICATIONS:

Style (Type)	Stand
Maximum CFM	472
Maximum Hose Velocity (SFPM)	3;465
Static Pressure (Wc.)	.748 H2O
Filter Size (W x L x D) (In.)	6-3/4 x 2-5/8 x 13-1/2
Filter Efficiency	90% @ 50 Microns
Sound Rating (Db.)	75 db @ 10 Ft
Max. Static Pressure (Wc.)	2.44″ H2O
Hose Size (W x L) (In.)	2 Inlets @ 3″
Motor (HP)	1/2 HP; 115V; 1Ph (20A)
Overall Dimensions (L x W xH) (In.)	15-1/2 x 16 x 32-1/4
