JET Tools JET JCDC-3 Cyclone Dust Collector Kit 3HP 230V 717530K

• JET
• JCDC-3 Cyclone Dust Collector Kit; 3HP; 230V 717530K
• JET Cyclone Air Filters bring maximum efficiency to your shop through their increased power and convenient designs and features. Direct mount filters; large collection bins and remote controls make JET Cyclone Dust Collection Systems the most powerful and efficient around.

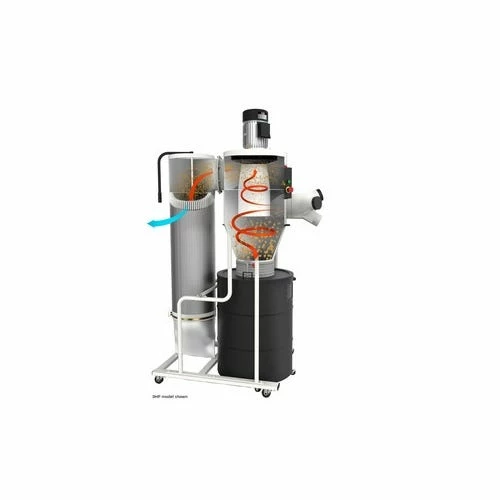

• The cyclone’s two stage separation provides more working CFM than comparable horsepower single stage units
• Heavy debris is pulled down to collection drum before debris stream reaches the filter; providing constant suction
• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
• Heavy debris is captured in 20 gallon drum with quick release levers and independent casters for quick emptying
• Included radio frequency remote control works from up to 50 feet away
• Remote timer settings of 2; 4; 6; or 8 hours (2HP & 3HP models only)
• Double paddle manual cleaning system quickly cleans the pleated filter
• Swivel casters make it easy to move the unit around the shop
• Number of Air Inlets: 1 at 8; 3 at 4″
• Filter Efficiency (Micron): 1
• Static Pressure (Wc.): 2.0
• Sound Rating (Db.): 76
• Impeller Diameter (In.): 15
• Impeller Material: Steel
• Velocity @ 8″ (FPM): 5609
• 1-Hose Connection Diameter (In.): 8
• Assembled Dimensions (L x W x H/In.): 30-7/16 x 57 x 88
• Footprint (L x W/In.): 57 x 30-7/16
• 3-Hoses Connection Diameter (In.): 4
• Canister Filter Length (In.): 38-3/8
• Motor Power (HP): 3
• Canister Filter Diameter (In.): 14-9/16
• Canister Collection Bag (Dia. x L/In.): 23-5/8 x 19-11/16
• Motor Phase (PH): 1
• Drum Collection Bag (Dia. x L/In.): 38-9/16 x 47-1/4
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 230
• Max. Static Pressure (Wc.): 8.9
• Collection Drum Capacity (gal.): 66
• Air Flow @ 8″ (CFM): 19
• Motor Amps: 13

“
