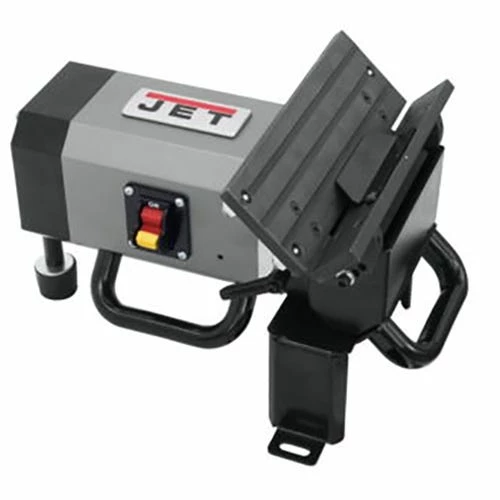

JET Tools JET JB-10R Portable Plate Beveling Straight And Round Bevels 751010

JET

JB-10P PORTABLE PLATE BEVELING STRAIGHT BEVELS

Weighing roughly 20-pounds; the JET JB-10R is designed to produce both straight and round corner edge bevels and is equipped with a 1-horsepower brushless motor for powerful torque at every speed. The milling type cutter heads with carbide inserts provide precision beveling giving your piece a pristine finish or a clean cut for a stronger weld.

FEATURES:

• Brushless motor increases torque output and RPM’s
• Cutting blade with 5 Indexable blades
• Cooling fan prevents overheating of the motor
• Temperature protected. If the temperture reaches over 105 C (221 F) the machine will automatically shut off.
• Three ball pins are added on the guide plate so the contact area can be adjusted at all times; ensuring a smooth chamfering process
• UL/CSA: Following strict guidelines and electircal requirements; this JET Beveling machine is UL /CSA Certified
• Non-slip ergonomic rubber handle
• Plate mounted to relieve operator fatique
• Eliminates slow grinding; fumes; heat and smoke; saving both time and strain on the operator
• Variable Speed 2000 to 6000 RPM’s
• Depth of cut is adjustable 15 to 45
• Chamfers both straight & round materials with the change of the blade
• V-Block style creates consistent edge quality
• Portable; easy to move around the shop
• Little to no vibration

SPECIFICATIONS:

• CHAMFERING CAPACITY FRONT WIDTH (IN.): 1/4
• CHAMFERING CAPACITY SIDE WIDTH @ 45 DEG (IN.): 3/8
• CHAMFERING ANGLE (DEG.): 15-45
• V-BLOCK LENGTH (IN.): 9
• MINIMUM DEPTH OF CUT (IN.): 1/8
• LENGTH OF POWER CORD (FT.): 5
• GROSS WEIGHT (LBS): 22
• OVERALL DIMENSIONS (L X W X H) (IN.): 15.7 X 11.02 X 11.8

“
