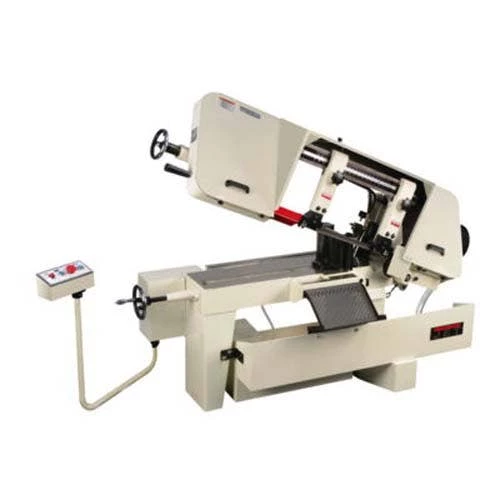

JET Tools Jet J-7020 10″ X 16″ Horizontal Bandsaw 115/230V 1 Ph 414472

• Jet
• J-7020; 10 x 16″ Horizontal Bandsaw 414472
• Exclusive 6-point blade guide assemblies and swivel control panel on this rugged JET saw enhance overall function.
• For added safety; the motor and electrics follow strict guidelines and electrical requirements to be certified by CSA Group
• Swivel control panel houses major saw controls
• Variable speed drive system allows the operator to easily fine tune the blade speed
• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
• Cutting Capacity (W x D) (In.) 10 x 16
• Round at 90 Degrees (In.) 10
• Round at 45 Degrees (In.) 10
• Rectangle at 90 Degrees (In.) 10 x 10 and 7 x 16
• Rectangle at 45 Degrees (In.) 6-1/2 x 11
• Vise Swivels (Deg.) 45
• Blade Speeds (SFPM) 100 – 350
• Blade Wheel Diameter (In.) 14
• Blade Length (In.) 130
• Blade Size (In.) 1 x .035 x 135
• Bed Height (In.) 23-1/2
• Motor (HP) 1-1/2 HP; 115/230V; 1Ph
• Weight (Lbs.) 927
• Overall Dimensions (L x W x H) (In.) 75-1/2 x 33 x 41

“
