- JET

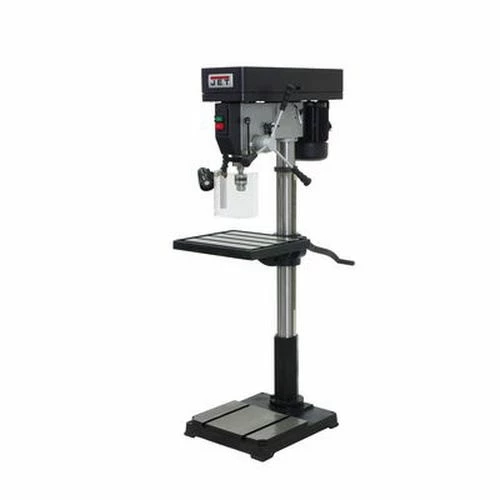

- IDP-22; 22″ Industrial Floor Model Drill Press 354301
- Accuracy; stability and versatility are the benchmark features of the JET 17″ and 22″ Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize tables and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.
- For added Safety; the IDP-22; 22″ Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
- Spindle is supported by high quality ball bearings
- Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
- Large Hand Grips designed with the users comfort in mind
- Rotating; 45 tilting; crank-operated worktable with quick release clamp
- A 1/2″ diameter external positive depth stop with three nut locking feature for quick adjustment
- Adjustable tension spindle return spring
- Drill chuck and key attach to the side of the drill press always within reach of the operator
- On/off switch located on front of the drill press head
- Heavy Duty construction
- Cast Iron table and base
- Table ground for accuracy
- STANDARD EQUIPMENT
- LED Machine Lamp
- Ground Table
- Spindle Safety Guard
- Drill Chuck and Key
- Style (Type): Belt Drive
- Drills to Center of Circle (in): 22
- Drilling Capacity Cast Iron (In.): 1-1/4
- Drilling Capacity Mild Steel (In.): 1
- Tapping Capacity Mild Steel (In.): 1
- Distance Column to Spindle (In.): 10-7/8
- Number of Spindle Speeds: 12
- Range of Spindle Speeds (RPM): 175 – 3;050
- Column Diameter (In.): 3-5/8
- Spindle Taper (In. x TPI): MT-3
- Spindle Travel (In.): 4-13/16
- Spindle Distance to Base (In.): 48-1/2
- Spindle Distance to Table (Max.) (In.): 28
- Table Size (L x W) (In.): 18-5/8 x 16-1/8
- T-Slots Number and Size (In.): 2 and 5/8
- T-Slot Centers (In.): 3/4
- Work Table Weight Capacity (Lbs.): 176
- Base Dimensions (In.): 22-5/8 x 19-7/16
- Base Work Table (In.): 21-1/2 x 18-5/16
- Base Slots Number & Size (In.): 2 and 5/8
- Motor (HP): 1-1/2HP; 115/230V; 1Ph
- Weight (Lbs.): 364
JET Tools JET IDP-22 22″ Industrial Floor Model Drill Press 354301
$360.00 Original price was: $360.00.$96.99Current price is: $96.99.
SKU: JET354301 Categories: Jet Metalworking Drill Presses, JET Metalworking Equipment, JET Tools Tag: JET Tools
- Quality Products, Quality Service
- Secure Shopping with Safe Payments
- Experience the difference quality makes.
- Quality and Affordability Combined

| OPT SKU | JET354301 |
|---|---|
| MPN | 354301 |
| UPC/GTIN | 731325466744 |
| Weight | 364.00 |
