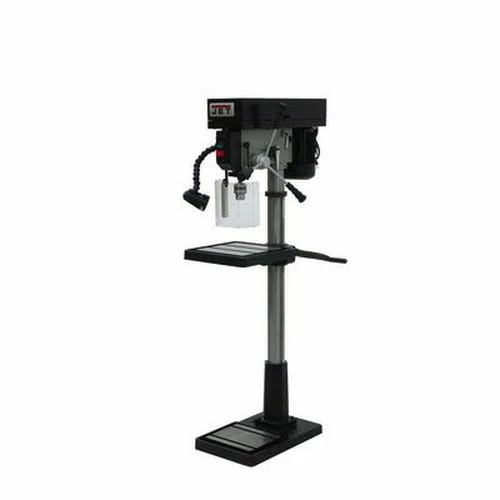

- IDP-17; 17″ Industrial Floor Model Drill Press 354300
- Accuracy; stability and versatility are the benchmark features of the JET 17″ and 22″ Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize tables and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.
- For added Safety; the IDP-17; 17″ Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
- Spindle is supported by high quality ball bearings
- Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
- Large Hand Grips designed with the users comfort in mind
- Rotating; 45 tilting; crank-operated worktable with quick release clamp
- A 1/2″ diameter external positive depth stop with three nut locking feature for quick adjustment
- Adjustable tension spindle return spring
- Drill chuck and key attach to the side of the drill press always within reach of the operator
- On/off switch located on front of the drill press head
- Heavy Duty construction
- Cast Iron table and base
- Table ground for accuracy
- STANDARD EQUIPMENT
- LED Machine Lamp
- Ground Table
- Spindle Safety Guard
- Drill Chuck and Key
- Style (Type): Belt Drive
- Drills to Center of Circle (in): 17
- Drilling Capacity Cast Iron (In.): 3/4
- Drilling Capacity Mild Steel (In.): 5/8
- Distance Column to Spindle (In.): 8-3/8
- Number of Spindle Speeds: 12
- Range of Spindle Speeds (RPM): 350 – 2;800
- Spindle Taper (In. x TPI): MT-2
- Spindle Travel (In.): 3-5/16
- Spindle Distance to Base (In.): 50
- Spindle Distance to Table (Max.) (In.): 30-1/2
- Table Size (L x W) (In.): 14 x 14
- T-Slots Number and Size (In.): 2 and 1/2
- T-Slot Centers (In.): 9/16
- Base Dimensions (In.): 21-3/4 x 13-3/4
- Base Work Table (In.): 16-15/16 x 10-13/16
- Base Slots Number & Size (In.): 2 and 1/2
- Motor (HP): 1 HP; 115/230V; 1Ph
- Weight (Lbs.): 276
JET Tools JET IDP-17 17″ Industrial Floor Model Drill Press 354300
$362.00 Original price was: $362.00.$96.99Current price is: $96.99.
SKU: JET354300 Categories: Jet Metalworking Drill Presses, JET Metalworking Equipment, JET Tools Tag: JET Tools
