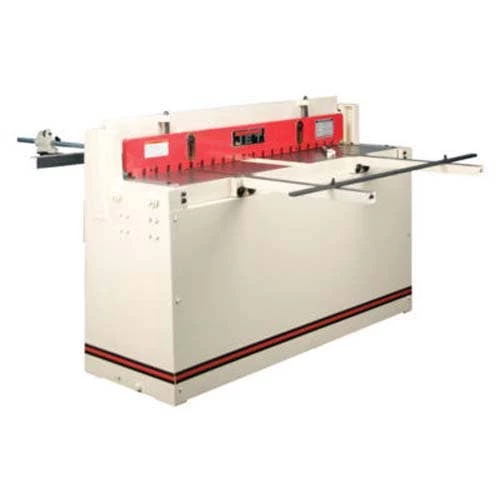

JET Tools Jet HS1452-1T 52″ X 14 Gauge Hydraulic Shear 1 Ph 756205

• Jet
• HS1452-1T; 52 x 14 Gauge Hydraulic Shear 1 Ph 756205
• The JET HS-1452 delivers the strength and accuracy your shop demands in a rugged; steel framed hydraulic shear. Capable of making the big cuts; and versatile enough to handle just about any job you need completed. The low angle blade design ensures smooth cuts along the precision-aligned bed and beam.
• 3 HP; 220V; 1 Ph
• Heavy-duty steel construction eliminates deflection across the blade span
• Hand-wheel controlled back gauge for quick and easy depth adjustments
• Easy to use satellite foot controls with emergency stop button
• Precise bed and beam accuracy assures working accuracy
• Low cutting angle to cut narrow strips without twisting
• 14 gauge maximum capacity for cutting mild steel
• 10 12 gauge maximum capacity for soft alloys
• Style (Type) Hydraulic
• Max. Soft. Alloy Capacity (Gauge) 10 – 12
• Mild Steel Capacity (Gauge) 14
• Shearing Length Capacity (In.) 52
• Back Gauge Capacity (In.) 25-1/2
• Front Gauge Capacity (In.) 23-1/2
• Strokes Per Minute (Full Length) 20
• Overall Dimensions (L x W x H) (In.) 62 x 77 x 42
• Weight (Lbs.) 1;335

“
