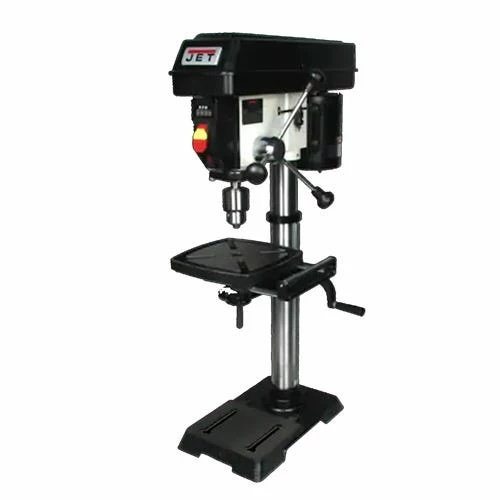

JET Tools Jet 12″ Drill Press With DRO 716000

Jet

12 Drill Press with DRO 716000

When is a Drill Press powerful enough to tackle the big jobs; and portable enough to do it anywhere? When it’s the JET 12 Variable Speed Drill Press. A powerful 1/2 HP induction motor that pushes through almost anything you throw at it; over 3-1/8″ spindle travel for maximum depth cutting; and our innovative X-shaped XACTA Laser that ensures drilling accuracy; makes this workhorse the best choice for in your shop or on the go.

FEATURES:

• Compact bench top design allows for easy transport.
• 10″ x 16-1/8″ cast iron base fits neatly on work benches with limited space”.
• Stable base design allows for easy re-positioning on work bench.
• Heavy Duty 1/2 HP induction motor for various drilling applications.
• Mechanical variable speed drive system for easy speed changes.
• Industrial 5/8″ drill chuck for multiple drilling applications”.
• Oversized; ergonomic knobs provide ease of use and maximum control.
• X-shaped XACTA Laser™ ensures drilling accuracy.
• Digital read out displays spindle speed for different drilling applications.
• LED work light increases visibility for intricate applications.
• Retractable roller extension provides support and quick work piece adjustment.
• Large paddle switch provides easy shut off and lockout protection.
• Clear linear scale with depth stop for consistent drilling depths.

SPECIFICATIONS:

Swing (In.)	12
Spindle Travel (In.)	3-1/8
Number of Spindle Speeds	Variable
Spindle Taper	MT2
Spindle Speed Range (RPM)	530 – 3100
Chuck Size (In.)	5/8
Motor Power (HP)	1/2
Motor Voltage (V)	115 only
Motor Amps	5
Weight (Lbs.)	85
Table Tilt (Deg.)	-45 to 45
Table Size (L x W) (In.)	9-1/2 x 9-1/2
Table Size Fully Extended (L x W) (In.)	9-1/2 x 16-1/2

“
