JET Tools Jet 10″ Sliding Dual Bevel Compound Miter Saw 707210

Jet

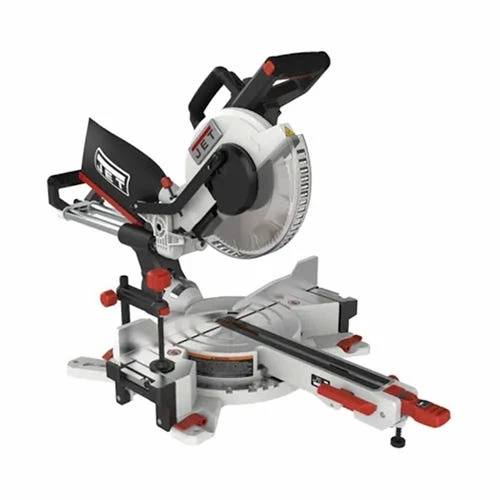

10 Sliding Dual Bevel Compound Miter Saw 707210

The new JET dual bevel sliding compound miter saw is one the most versatile saws in your shop. Efficiently cut miters; bevels; straights; and compounds with precision and accuracy over a hand saw. A workhorse in your shop that is also portable enough to take with you when you need a great saw on the job.

FEATURES:

• Dual bevel capability with up front controls to maximize cutting of compound angles.
• Change miter angles quickly with the single motion thumb lever.

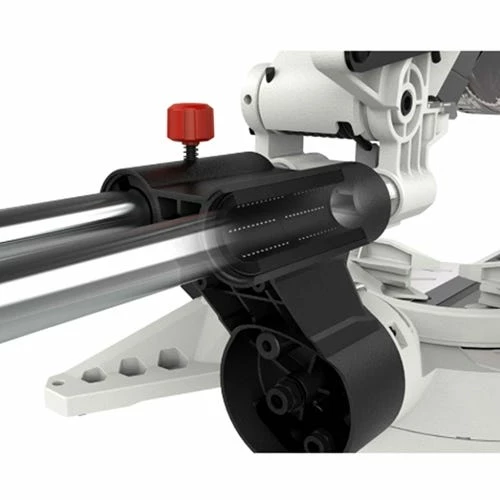

• Enclosed linear bearings allows for smooth and controlled slide operation.
• Durable compact die cast aluminum construction.
• Heavy duty 15 amp motor easily powers through wood.
• Ergonomic; D-shaped; ambidextrous; rubber grip handle for maximum control.

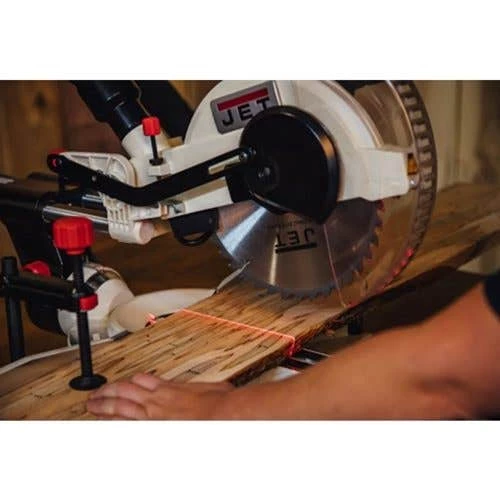

• Razor thin high visibility red laser provides precise cut line reference.
• LED light provides additional visibility in low light areas.
• Miter detent override provides fine adjustment for infinite miter angles.

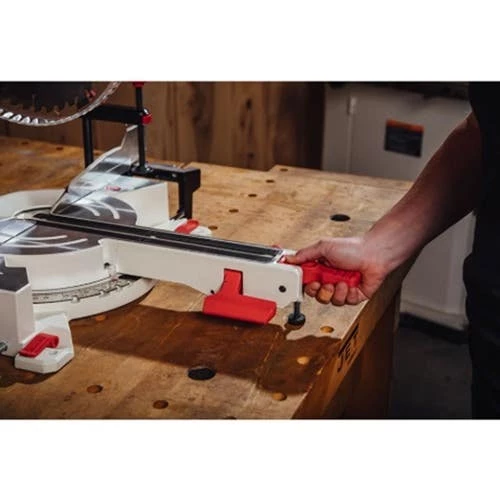

• Adjustable left and right fence and extension tables provide greater versatility and support.
• Dust port with dust bag and 2-1/2” adaptor to maximize dust collection.
• 5 second motor brake.

SPECIFICATIONS:

Blade Size (In.)	10
Arbor Size (In.)	5/8
Bevel Type	Dual
Blade Speed (SFPM)	4200
Bevel Stops	0°; 33.9°; and 45° (L/R)
Miter Stops	0°;15°;22.5°;31.6°;45° (L/R)
Miter Capacity (Deg.)	52 L; 60 R
Cut Capacity at 90° (In.)	12 x 3-9/16
Cut Capacity at 45° Miter (In.)	12 x 1-9/16 (L); 12 x 1 (R)
Cut Capacity at 45° Bevel (In.)	8-1/2 x 3-9/16
Cut Capacity at 45° Compound (In.)	8-1/2 x 1-9/16 (L); 8-1/2 x 1 (R)
Motor Phase (PH)	1
Motor Voltage (V.)	115
Motor Amps	15

“
