Enerpac

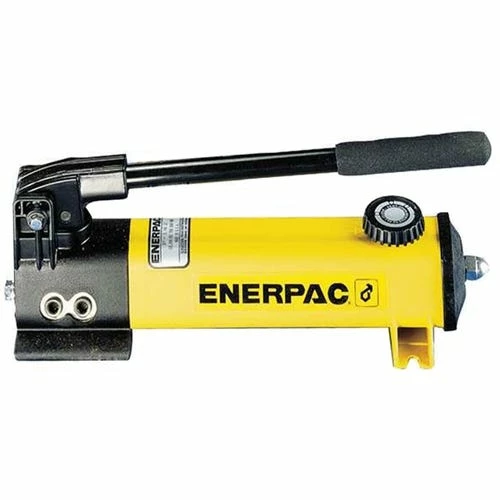

Single Speed Lightweight 20 in3 Usable Oil Hydraulic Hand Pump For Single-Acting Cylinders P141
The Enerpac P141 high-pressure; lightweight single-speed hydraulic hand pump is for lifting; bolting; or applying pressure with a hydraulic cylinder (sold separately) in intermittent and non-repetitive construction; manufacturing; and maintenance and repair applications. The glass-filled nylon reservoir; nylon-covered aluminum base; and fiberglass handle provide corrosion resistance and are lighter than steel hydraulic hand pumps.
FEATURES:
- Lightweight and compact design.
- Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance.
- Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps.
- Lower handle effort to minimize operator fatigue.
- Handle lock and lightweight construction for easy carrying.
- Large oil capacities to power a wide range of cylinders or tools.
- Non-conductive fiberglass handle for operator safety.
- Internal pressure relief valve for overload protection.
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10;000 |
|---|---|
| Pressure Rating (psi) 2nd Stage | 10;000 |
| Cylinder Compatability | Single-acting |
| Pump Type | Single Speed |
| Reservoir Capacity (in3) | 20 |
| Usable Oil Capacity (in3) | 20 |
| Maximum Flow at Rated Pressure | .055 in3/stroke |
| Oil Displacement per Stroke (in3) | 0.055 |
| Oil Displacement per Stroke (in3) 1st Stage | – |
| Oil Displacement per Stroke (in3) 2nd Stage | – |
| Maximum Handle Effort (lbs) | 72 |
| Piston Stroke (in) | 0.5 |
| Valve Operation | Manual |
| Power Source | Manual |
