Enerpac

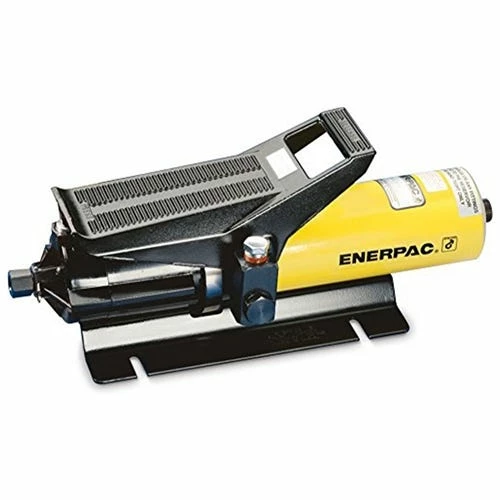

Air Hydraulic Pump w/ 36 in3 Usable Oil For Single-Acting Cylinders PA133
The Enerpac PA-133 single-speed hydraulic air pump is for lifting; bolting; or applying pressure with a hydraulic cylinder (sold separately) in plant maintenance; fabrication; production; bolting; vehicle repair; and other applications where compressed air is the preferred power source. It has a three-way control valve for advancing; releasing; or holding a single-acting cylinder. The pump is controlled by a treadle that can be operated by hand or by foot.
FEATURES:
- Rugged construction – built for long life and easy service.
- Swivel coupling simplifies hydraulic connection and pump operation.
- Three-position treadle provides cylinder advance; hold and retract operation.
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10;000 |
|---|---|
| Cylinder Compatability | Single-acting |
| Reservoir Capacity (in3) | 36 |
| Usable Oil Capacity (in3) | 36 |
| Maximum Flow at Rated Pressure | 8 in3/min |
| Output Flow Rate (in3/min) No Load | 40 |
| Output Flow Rate Load (in3/min) | 8 |
| Valve Function | Advance / Hold / Retract |
| Valve Operation | Manual |
| Power Source | Air |
| Air Pressure Range (psi) | 60 – 120 |
| Air Consumption (scfm) | 9 |
| Sound Level (dBa) | 85 |
