Enerpac

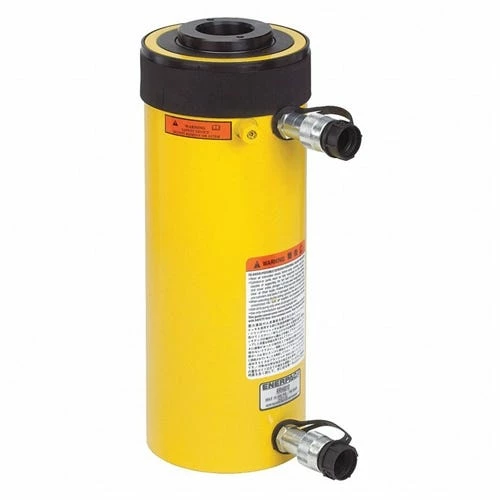

60 Ton Hydraulic 6.50 Stroke Double-Acting Hollow Plunger Cylinder RRH606
This Enerpac RRH606 double-acting hollow-plunger hydraulic cylinder with 60-ton capacity and 6.50″ stroke has a hollow plunger for use in applications where the need for push and pull forces might alternate; such as testing; maintenance; and tensioning applications. The double-acting hydraulic cylinder uses liquid pumped through two ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement.
FEATURES:
- Relief valves prevent damage in case of over-pressurization.
- Baked enamel finish for increased corrosion resistance.
- Collar threads enable easy fixturing.
- Double-acting operation for fast retraction.
- Nickel-plated; floating center tube increases product life.
- Hollow plunger allows for both pull and push forces.
- CR-400 couplers and dust caps included on all models.
- Plunger wiper reduces contamination; extending cylinder life.
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10;000 |
|---|---|
| Capacity Class (tonnage) | 60 |
| Maximum Cylinder Capacity Advance (tons) | 64 |
| Maximum Cylinder Capacity Retract (tons) | 42 |
| Stroke (in) | 6.5 |
| Collapsed Height A (in) | 12.75 |
| Extended Height B (in) | 19.25 |
| Return Type | Double-Acting; Hydraulic Return |
| Plunger Type | Hollow |
| Material | Steel |
| Cylinder Effective Area Advance (in2) | 12.73 |
| Cylinder Effective Area Retract (in2) | 8.37 |
| Oil Capacity Advance (in3) | 82.77 |
| Oil Capacity Retract (in3) | 54.24 |
| Surface Treatment | Paint |
