Enerpac

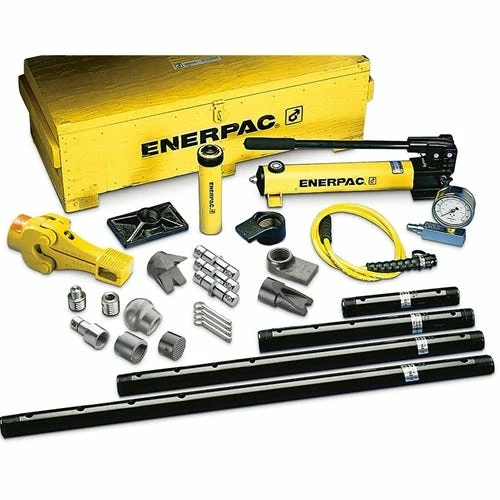

5 Ton Hydraulic Cylinder & Hand Pump Set w/ 22 Cylinder Attachments MSFP10
This Enerpac MSFP10 maintenance set is a complete assortment of accessories for hydraulic power tools used for pushing; pulling; lifting; pressing; or clamping. It includes an Enerpac pump; hose; cylinder; and gauge. It comes with 22 lock-on or threaded attachment components; and maintains a 5-ton capacity when using these attachments.
FEATURES:
- Using these sets allows you to quickly configure a unique tool to meet your most difficult jobs.
- Lock-on or threaded connectors.
- Complete set for almost every maintenance application.
- When cylinders are used with maintenance set attach ments or components; the maximum system pressure must be limited to half the rated pressure (5;000 psi).
- If no attachments are being used; capacity is double these values. Maximum operating pressure is 10;000 psi.
- Only use attachments provided with set. Non-Enerpac attachments and longer extension tubes will reduce column strength; potentially creating unsafe conditions.
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 5;000 |
|---|---|
| Stroke (in) | 6.13 |
| Collapsed Height (in) | 9.75 |
| Number of Attachment Components | 22 |
INCLUDES:
- A10 5 Ton RC Threaded Connector Cylinder Attachment
- A128 5 Ton RC Rubber Flex-Head Cylinder Attachment
- A129 5 Ton RC Wedge Head Cylinder Attachment
- A13 5 Ton RC Threaded Adaptor Cylinder Attachment
- A14 5 Ton RC Flat Base Cylinder Attachment
- A15 5 Ton RC 90 Degree V-Base Cylinder Attachment
- A16 5 Ton RC Lock Pin Cylinder Attachment
- A18 5 Ton RC Serrated Saddle Cylinder Attachment
- A20 5 Ton RC Collar Toe Cylinder Attachment
- A21 5 Ton RC Base Cylinder Attachment
- A6 5 Ton Threader Plunger Toe Cylinder Attachment
- CW166 Wood Storage Box
- G2535L Hydraulic Pressure Gauge
- GA3 Guage Adaptor
- HC7206 6′ Thermo-Plastic High Pressure Hydraulic Hose
- MZ1050 5 Ton RC Lock-on Connector Cylinder Attachment
- MZ1052 5 Ton RC Female Lock-on Adaptor Cylinder Attachment
- P392 Lightweight Hydraulic Hand Pump
- RC106 11.2 Ton Hydraulic 6.13 Single Acting General Purpose Cylinder
- WR5 1 Ton Hydraulic Wedgie & Spread Cylinder
