Enerpac
30 Ton Hydraulic 10.13 Stroke Double-Acting Hollow Plunger Cylinder RRH3010

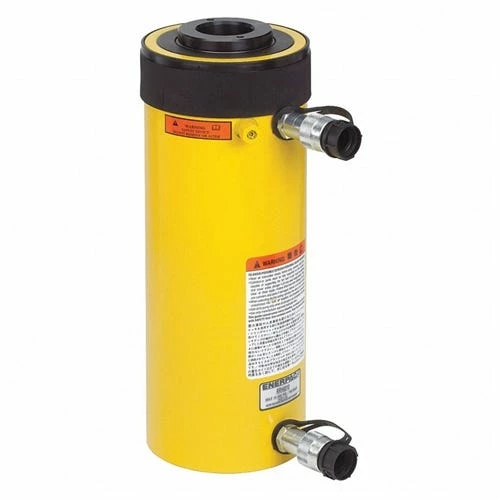

This Enerpac RRH-3010 double-acting hollow-plunger hydraulic cylinder with 30-ton capacity and 10.13″ stroke has a hollow plunger for use in applications where the need for push and pull forces might alternate; such as testing; maintenance; and tensioning applications. The double-acting hydraulic cylinder uses liquid pumped through two ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement.
FEATURES:
- Relief valves prevent damage in case of over-pressurization.
- Baked enamel finish for increased corrosion resistance.
- Collar threads enable easy fixturing.
- Double-acting operation for fast retraction.
- Nickel-plated; floating center tube increases product life.
- Hollow plunger allows for both pull and push forces.
- CR-400 couplers and dust caps included on all models.
- Plunger wiper reduces contamination; extending cylinder life.
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10;000 |
|---|---|
| Capacity Class (tonnage) | 30 |
| Maximum Cylinder Capacity Advance (tons) | 36 |
| Maximum Cylinder Capacity Retract (tons) | 24 |
| Stroke (in) | 10.13 |
| Collapsed Height A (in) | 17 |
| Extended Height B (in) | 27.13 |
| Return Type | Double-Acting; Hydraulic Return |
| Plunger Type | Hollow |
| Material | Steel |
| Cylinder Effective Area Advance (in2) | 7.22 |
| Cylinder Effective Area Retract (in2) | 4.71 |
| Oil Capacity Advance (in3) | 73.12 |
| Oil Capacity Retract (in3) | 47.71 |
| Surface Treatment | Paint |
“
