Enerpac

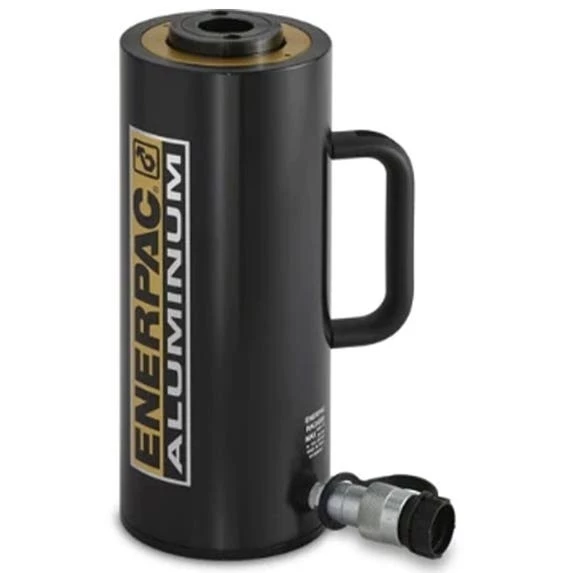

25.4 Ton Hydraulic 5.91″ Stroke Single-Acting Hollow Plunger Cylinder RACH206
FEATURES:
- Hollow plunger design allows for both pull and push forces.
- Composite bearings increase cylinder life and side load resistance.
- Hard coat finish on all surfaces resists damage and extends cylinder life.
- Handles included on all models.
- Floating center tube increases seal life.
- Steel baseplate and saddle for protection against load-induced damage.
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity.
- High-strength return spring for rapid cylinder retraction.
- CR-400 coupler and dustcap included on all models.
- All cylinders meet ASME B-30.1 standards.
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
|---|---|
| Capacity Class (tonnage) | 20 |
| Maximum Cylinder Capacity Advance (tons) | 25.4 |
| Stroke (in) | 5.91″ |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Hollow |
| Material | Aluminum |
| Cylinder Effective Area Advance (in2) | 5.07 |
| Oil Capacity Advance (in3) | 29.94 |
| Surface Treatment | Anodized |
| Coupler | CR400 Coupler |
