Enerpac 100 Ton Hydraulic 1.50″ Stroke Double-Acting Hollow Plunger Cylinder RRH1001

Original price was: $343.00.Current price is: $95.99.

Quality Products, Quality Service

Secure Shopping with Safe Payments

Experience the difference quality makes.

Quality and Affordability Combined

Enerpac

100 Ton Hydraulic 1.50 Stroke Double-Acting Hollow Plunger Cylinder RRH1001

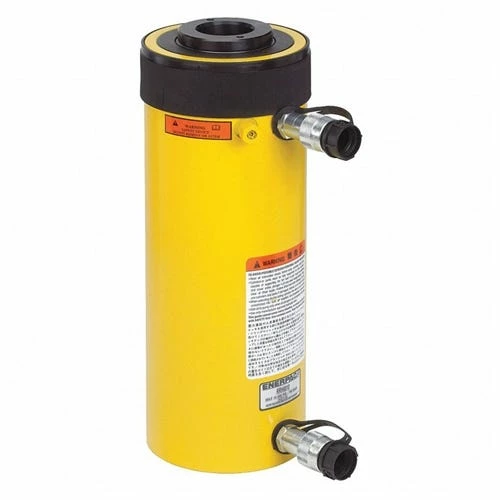

This Enerpac RRH1001 double-acting hollow-plunger hydraulic cylinder with 100-ton capacity and 1.50″ stroke has a hollow plunger for use in applications where the need for push and pull forces might alternate; such as testing; maintenance; and tensioning applications. The double-acting hydraulic cylinder uses liquid pumped through two ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement.

FEATURES:

Relief valves prevent damage in case of over-pressurization.
Baked enamel finish for increased corrosion resistance.
Double-acting operation for fast retraction.
Nickel-plated; floating center tube increases product life.
Hollow plunger allows for both pull and push forces.
CR-400 couplers and dust caps included on all models.
Plunger wiper reduces contamination; extending cylinder life.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10;000
Capacity Class (tonnage)	100
Maximum Cylinder Capacity Advance (tons)	103
Maximum Cylinder Capacity Retract (tons)	68
Stroke (in)	1.5
Collapsed Height A (in)	6.5
Extended Height B (in)	8
Return Type	Double-Acting; Hydraulic Return
Plunger Type	Hollow
Material	Steel
Cylinder Effective Area Advance (in2)	20.63
Cylinder Effective Area Retract (in2)	13.54
Oil Capacity Advance (in3)	30.94
Oil Capacity Retract (in3)	20.32
Surface Treatment	Paint
