CS Unitec 11-Head Pneumatic Deck Hammer W/ SF11 Cruciform Heads 159.5910

CS Unitec

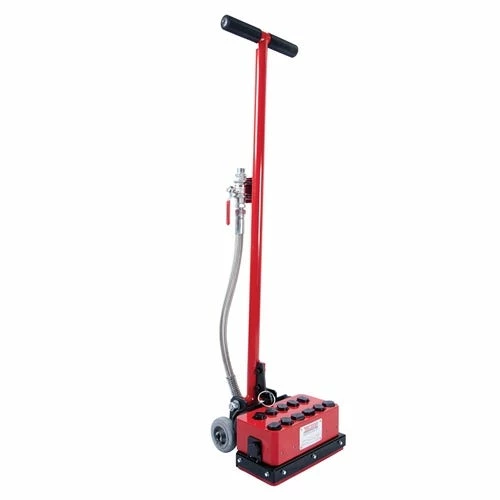

11-Head Pneumatic Deck Hammer w/ SF11 Cruciform Heads 159.5910

CS Unitec’s ScaleForce Eleven-Head Pneumatic Deck Hammer; with 33;000 BPM; will fracture and reduce scale; corrosion and thick coatings in minutes. The machine’s low profile body and adjustable handle mean the deck hammer needs only 6 clearance for working under pipes and other constructions.

FEATURES:

• Includes Vibro-Lo vibration reduction technology.
• Detachable taper fit cutter head reduces cost of replacement and extends piston life.
• Optional vacuum shroud reduces hazardous and nuisance dust when used with an industrial vacuum.
• Operates with 8x less vibration than standard models.
• Utilizes vibration damping components to offset the hammer vibration created when the heads impact the workpiece.

SPECIFICATIONS:

Dimensions (WxLxH)	11.1″ x 47.6″
Cutting Width	10″
Blows per Min.	33;000
CFM @ 90 PSI	70
Noise Level dB(a)	113.1
Vibration Levels m/s2	5.76
IMPA	590405
ISSA	5509501

“
