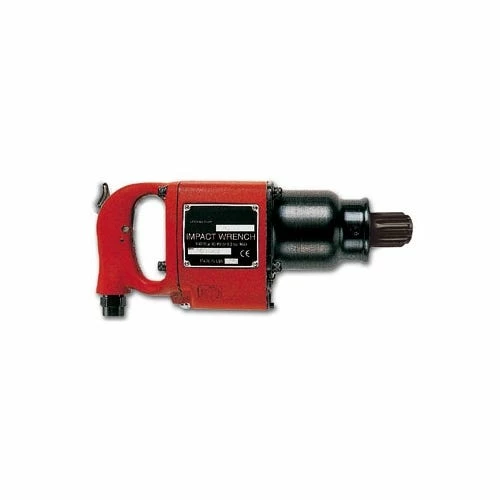

Metric Imperial Model CP0611-D28L Part number 6151590170 Actual air consumption 32 l/s 68 cfm Air inlet thread size 1/2 “ Blows per minute 1020 Box dimensions 505x240x145 mm Clutch type 2-jaw clutch Free speed 3500 rpm Free speed air consumption 55 l/s Handle type D-Handle Length 360 mm Maximum Torque (reverse) 3790 Nm 2800 ft.lbs Min. hose size 1 “ Net weight 10.4 kg 22.9 lb Side to center 46 mm 1.81 “ Socket retainer Hole Sound Power 110 db(A) Sound pressure 99 db(A) Square drive #5 spline “ Vibration 18 m/s² Vibration ISO ISO-28927-2 Vibration uncertainty (K) 4.1 m/s² Working Torque Range (fwd) 1;220 – 2;440 Nm 900 – 1;800 ft.lbs
“
